Top 3 Features
FlexHeat™ Triple Radiant Element
Get three elements in one with a 6" inner ring that's great for smaller pots and pans, and 9" and 12" outer rings that make room for larger cookware.

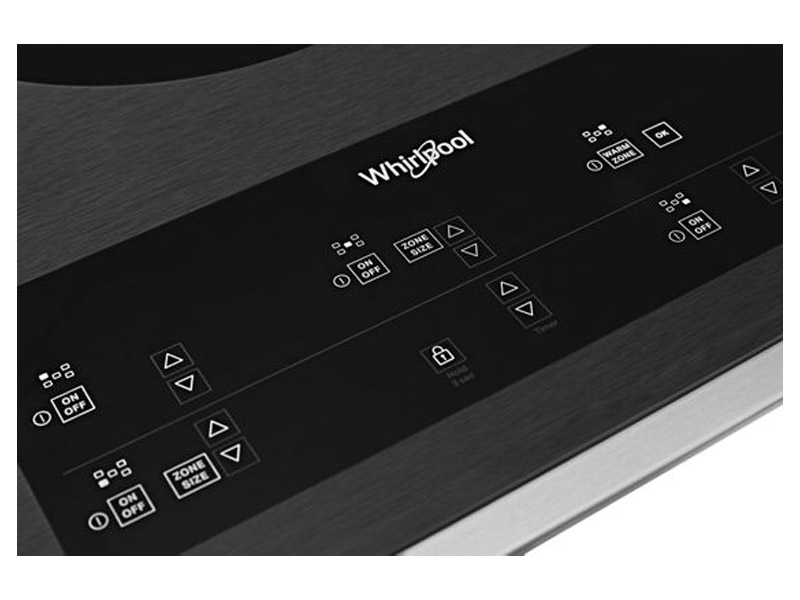

Tap Touch Controls
Clean the controls as easily as you use them.
Control Lock Mode
Disable the control panel to avoid unintended use.
Additional Features
FlexHeat™ Dual Radiant Element
Get two elements in one with a 6" inner ring that's great for smaller pots and pans and a 10" expandable outer ring that makes room for larger cookware.
Easy-Wipe Ceramic Glass Cooktop
Wiping up spills is simple with the easy-to-clean cooktop.
Warm Zone Element
Keep food warm while you're finishing the rest of the meal using this low-powered element.
Kitchen Timer
Keep track of cook times with an easy-to-clean Kitchen Timer that’s integrated into the Tap Touch Controls.
5 Element Cooktop
Cook more of your family's favorites and enjoy added versatility with a fifth element.
30 & 40 Amp Installation
Properly install with either a 30 or 40 amp hookup, so there's no need to rewire.
Hot Surface Indicator Light
See when the cooktop's still hot to the touch, even after it's been turned off, with a light that lets you know.
Wall Oven Compatible
Install this cooktop in a counter above select Whirlpool® Single Wall Ovens or on its own for more flexibility
8" Extra Element
Cook small dishes like sides and sauces on the 8" Extra Element.
6" Extra Element
Cook small dishes like sides and sauces on the 6" Extra Element.
ADA compliant
This cooktop meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
Dimensions | |
---|---|
Depth | 22 13/16 |
Width | 36 5/16 |
Height | 5 1/4 |
Carton Depth | 25 |
Carton Height | 9 1/4 |
Carton Width | 40 3/4 |
Gross Weight | 50 |
Net Weight | 44.0 |
Certifications | |
Prop 65 | Standard |
ADA Compliant | ADA Height and Operation Compliant |
UL | Yes |
Description | |
Combinations with Oven | WOS11EM4,WOS51EC0,WOS51EC7,WOS51ES4,WOS72EC0,WOS72EC7,WOS92EC0,WOS92EC7,WOS97EC0,WOS97ES0,WOSA2EC0 |
Cooktop Type | Standard |
Fuel Type | Electric |
Size (in.) | 36 |
Features | |
Hot Surface Indicator Light | Yes |
Digital Display | Yes |
Automatic Pan Detection | No |
Downdraft Vent | No |
Heating Element On Indicator Light | Yes |
Automatic Pan Size Adjustment | No |
Installs Over Built-In Oven | Yes |
Griddle | NA |
LP Convertible | No |
Power Boost | No |
Power Outage Compatible | No |
CONTROLS | |
Control Type | Tap Touch |
Infinite Heat Controls | No |
Control Location | Right Front |
Cooktop Details | |
Cooktop Element Style | Radiant |
Cooktop Surface Color | Black |
Number of Cooking Element-Burners | 5 |
Number of Open Bays | NA |
Center Rear Element-Burner Power | 3000/2200/1100W |
Right Front Element-Burner Size | 8" |
Center Rear Element-Burner Size | 12"/9"/6" |
Center Rear Element-Burner Type | Triple |
Left Front Element-Burner Power | 3000W/1900W |
Right Rear Element-Burner Size | 6" |
Left Front Element-Burner Size | 10"/6" |
Left Rear Element-Burner Size | 6" |
Left Rear Element-Burner Power | 1200W |
Left Rear Element-Burner Type | Standard |
Right Rear Element-Burner Power | 100W |
Right Rear Element-Burner Type | Round |
Right Front Element-Burner Type | Standard |
Cooktop Configuration | All Burners |
Right Front Element-Burner Power | 1800W |
Left Front Element-Burner Type | Dual |
Details | |
Cooktop Surface Material | Glass |
Electrical | |
Amps | 40 |
Power Cord Included | No |
Volts | 240 |
208V Compatible | Yes |
Hz | 60 |
Energy | |
Annual Energy Usage [kWh] | 258 |
