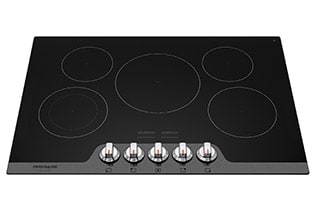

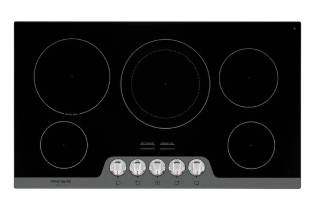

Fits-More Cooktop
The Fits-More cooktop features five elements - allowing you to cook more at once.

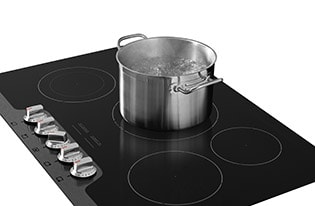

Get Cooking Faster with Quick Boil
Our powerful 3,200 watt element allows you to boil water in less than three minutes1.

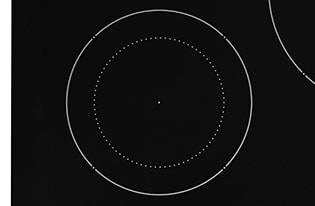

SpaceWise Expandable Elements
Flexible elements expand to your cooking needs.

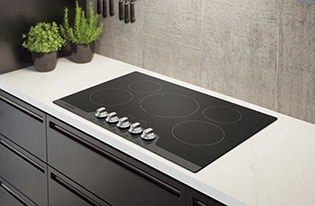

Frigidaire Fit Promise
We promise that your new 30" or 36" Frigidaire Gallery brand cooktop will fit your existing countertop cutout of the same width and configuration, or we will reimburse you for cabinet modification costs up to $100.

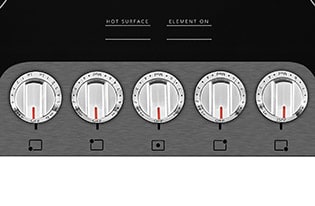

Easy to Use Front Controls
Controls located on the front of the cooktop allows you to adjust the temperature without reaching over hot items.

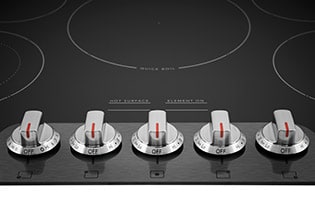

Express-Select Controls
Easily go from warm to boil.
Ceramic Glass Cooktop
For a more beautiful cooktop that's easy to clean.

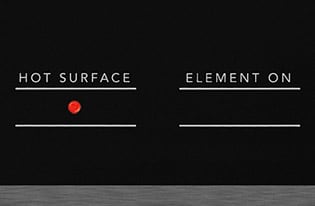

Hot Surface Indicators
Light on your cooktop informs you when the surface is hot.
Approved Over Frigidaire Electric Wall Ovens
Cooktops are approved for installation above any of our Single Electric Wall Ovens.
| Dimensions: Exterior | |
|---|---|
| Height | 2-5/8" |
| Depth | 21-3/8" |
| Width | 30-5/8" |
| DIMENSIONS: CUT-OUT | |
| Height | 5" |
| Depth | 19-5/8" - 20-1/2" |
| Width | 28-1/2" - 29-7/8" |
| Installation Type | |
| Oven Combo Approved | Yes |
| COOKTOP | |
| Left Rear | 6" - 1200 Watts |
| Cooking Surface | Black Ceramic Glass |
| Cooktop Surface Type | smooth surface |
| Right Front | 7" - 1800 Watts |
| Center Rear | 9" - Quick Boil - 3200 Watts |
| Hot-Surface Indicator Light | Yes |
| Left Front | 5" to 7" - 750/1800 Watts |
| Right Rear | 6" - 1200 Watts |
| CONTROLS | |
| Control Type | Mechanical |
| Control Location | Center front |
| Certifications & Approvals | |
| Sabbath Mode | No |
| ADA Compliant - All Brands | Yes |
| Agency Approval(All Brands) | UL/CSA |
| General Specifications | |
| PROP 65 Label | No |
| ELECTRICAL SPECIFICATIONS | |
| Connected Load @ 240V | 9.2 / 6.9 |
| Amps @ 240 Volts | 38.3 / 33.2 |
| Min Circuit Required | 40A |
| Connection Location | Right Rear |
| Voltage Rating | 240V / 208V 60Hz |
| General Specifications | |
| Collection | Frigidaire Gallery |
| Installation Type | Drop-In |
| Size | 30'' |
| Power Type | Electric |
| ProductLaunch | NA |
| Shipping Weight (lbs) | 35 |
| Product Weight (lbs) | 65 |
