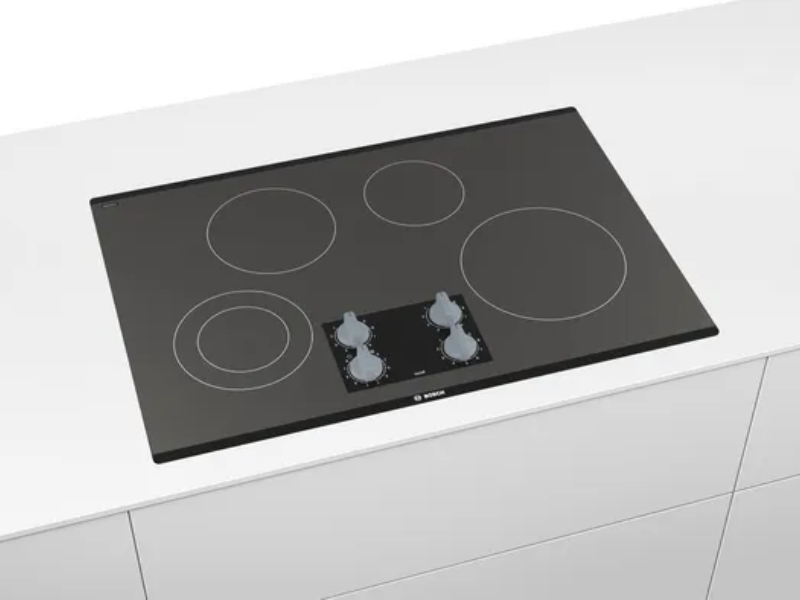

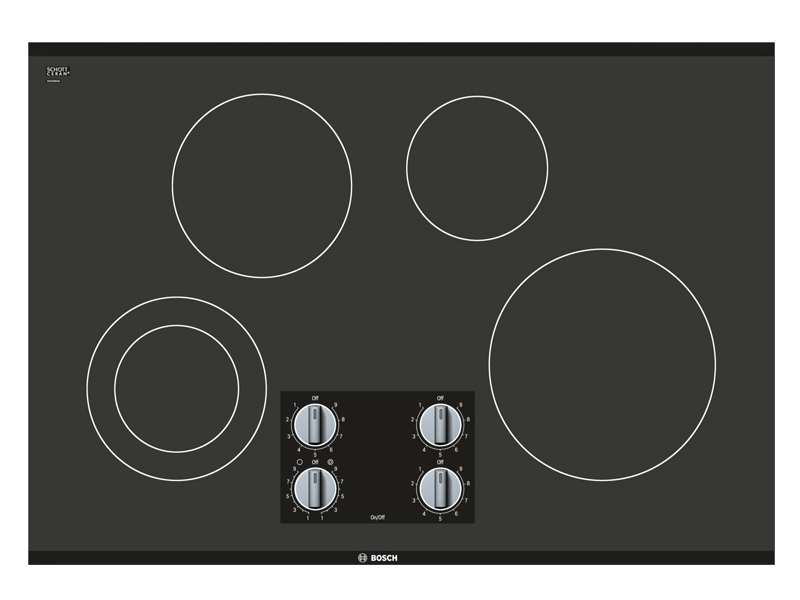

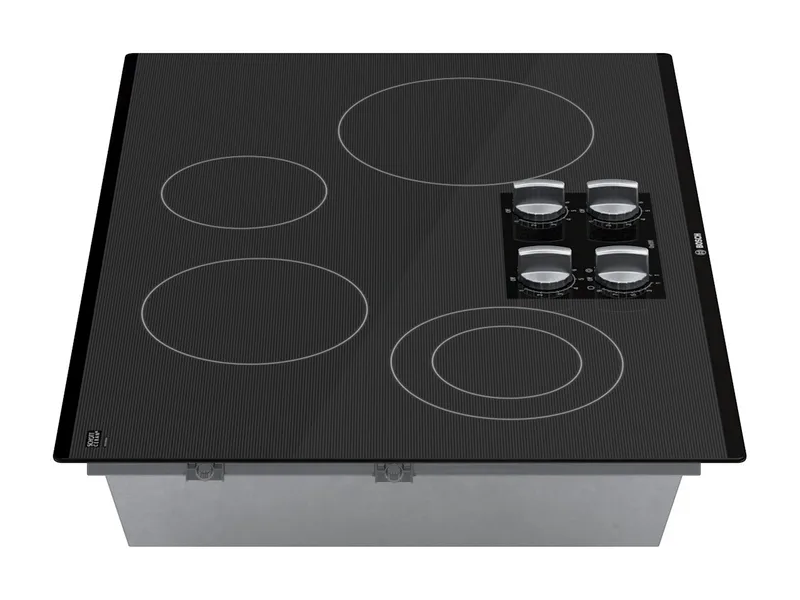

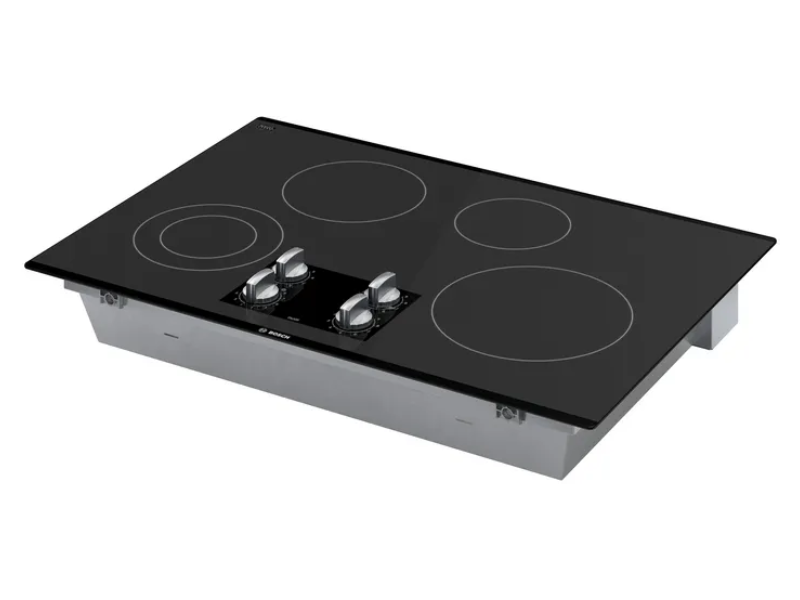

30" Bosch 500 Series Black Frameless Electric Cooktop - NEM5066UC
$1,849.00 CAD
$2,159.00
Save $310.00
Literature
- Infinite Temperature Controls for Precision Cooking
- Dual Element Offers the Capability to use Multiple Pan Sizes
Design

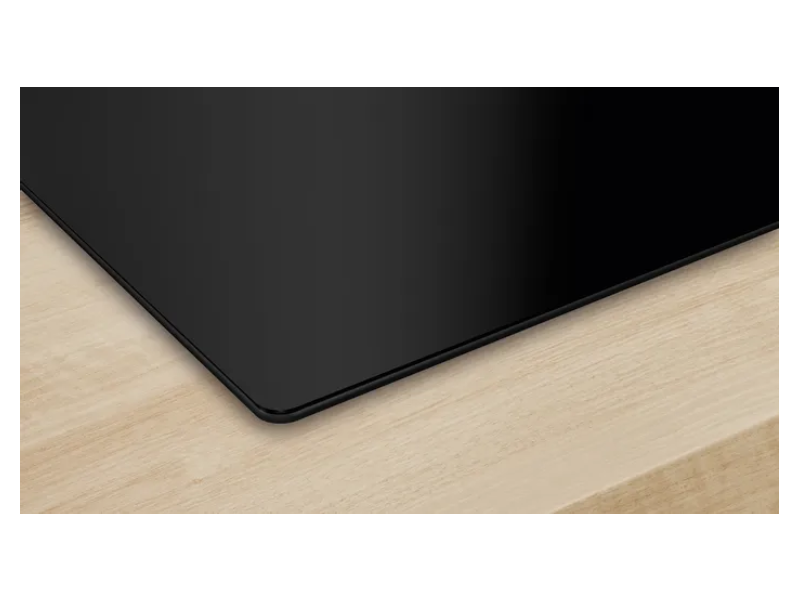

- Black-glass Seemless Design
- Cooktop Design Coordinates with Bosch Ovens and Ventilation
Performance
- Dual Element Offers the Capability to use Multiple Pan Sizes
- Infinite Temperature Controls for Precision Cooking
- Powerful 2,500W Right-Front Burner for Faster Boil Times
Safety
2-Level Heat Indicator - Warns if Cooktop is Warm or Hot
Specification | |
---|---|
Total number of cooktop burners | 4 |
Power of 1st heating element (W) | 0.7 ; 1.7 kW |
Dimension of 1st heating element (in) | 7"; 5" |
Location of 1st heating element | front left |
Knob Material | Plastic |
Location of 2nd heating element | back left |
Power of 2nd heating element (W) | 1.8 kW |
Dimension of 2nd heating element (in) | 7" |
Location of 3rd heating element | back right |
Power of 3rd heating element (W) | 1.2 kW |
Dimension of 3rd heating element (in) | 6" |
Location of 4th heating element | front right |
Power of 4th heating element (W) | 2.5 kW |
Dimension of 4th heating element (in) | 9" |
Sealed Burners | No |
Approval certificates | CSA |
Watts (W) | 7,200 W |
Current (A) | 30/30 A |
Volts (V) | 240/208 V |
Frequency (Hz) | 60 Hz |
Plug type | No plug |
Energy source | Electric |
Overall appliance dimensions (HxWxD) (in) | 1/4"+4" x 31" x 21 1/4" |
Required cutout size (HxWxD) (in) | 4" x 28 7/8" x 20" |
Product packaging dimensions (HxWxD) (in) | 7 7/8" x 37 3/8" x 24" |
Minimum distance from counter front (in) | 2 1/4" |
Minimum distance from rear wall (in) | 2" |
Net weight (lbs) | 25 lbs |
Gross weight (lbs) | 34 lbs |
