WOD77EC0HV
Key Features
- Smart Appliance
- Scan-to-Cook technology (U.S. only.)
- Yummly® Guided Cooking
- Touchscreen
- Voice control with a compatible voice-enabled device
Product Overview

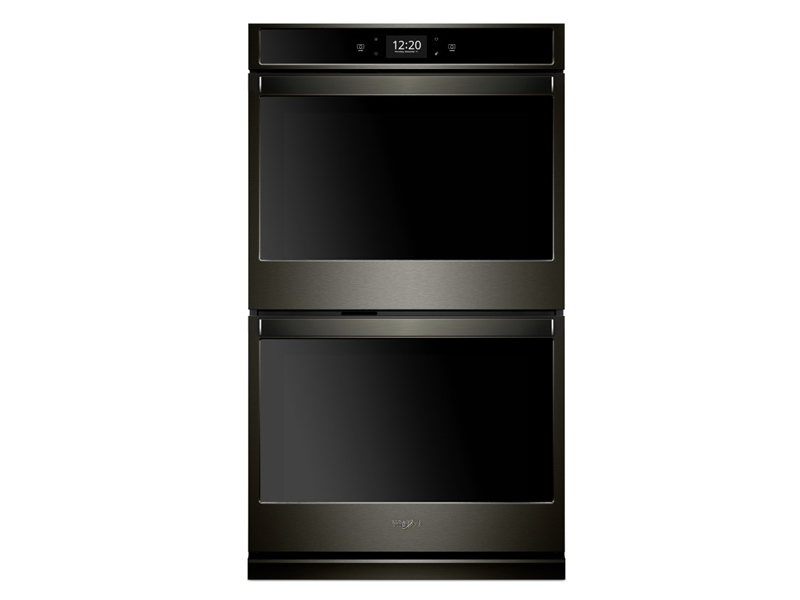

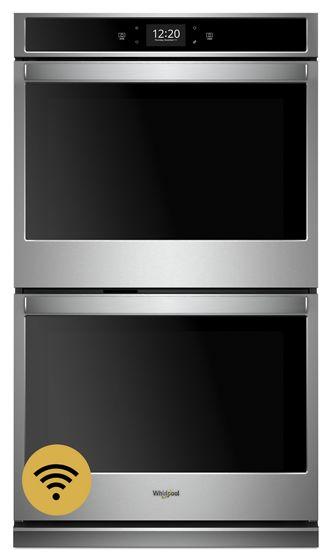

10.0 cu. ft. Smart Double Wall Oven with True Convection Cooking
This self-cleaning double wall oven helps you get the right settings every time. Use your smartphone or tablet to send multiple cooking instructions to the oven all at once. A touchscreen provides instant access to settings your family uses most, too.

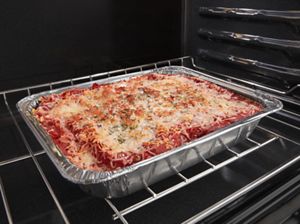

Frozen Bake™ Technology
Skip preheating and cook frozen favorites like pizza and lasagna faster with preprogrammed settings that automatically adjust cooking times for you.

True Convection Cooking
Cook foods faster with the addition of a third element plus a fan that distributes hot air evenly over, under and around food so dinner is ready when they are.
Additional Features
Smart Appliance
Care smarter with connected features that let you send cooking instructions to the oven from your smartphone or tablet.
Scan-to-Cook technology (U.S. only.)
Get the right settings every time. Scan a frozen food barcode with your smartphone or tablet and send recommended or customized cooking instructions straight to your oven for dinner done the way your family wants it.
Yummly® Guided Cooking
Yummly® Guided Cooking makes meal prep easier by helping you answer the question “what’s for dinner?” before it’s even asked. Recipes with the Connected Fork icon in the Yummly® app include step-by-step video tutorials that provide the extra assistance you need on busy days. Prompts in the app even send cooking instructions straight to your Whirlpool® smart wall oven at the right times, so dinner’s ready when your family’s hungry.

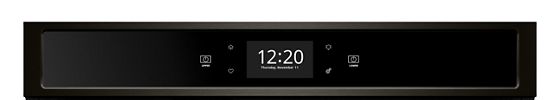

Touchscreen
Get instant access to the settings you use most with a touchscreen that learns, adapts and suggests customized presets based on your family's routines.
Voice control with a compatible voice-enabled device
Control your kitchen no matter what you’ve got on your hands using simple voice commands with the Google Assistant.
Fingerprint Resistant

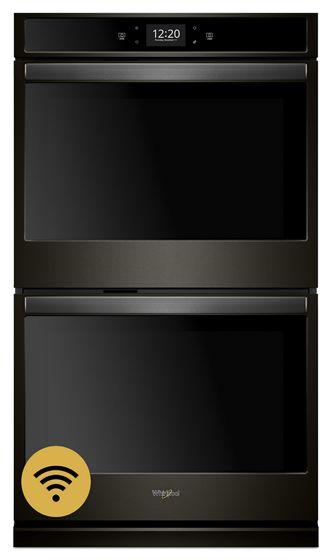

Available in a black stainless steel finish, easy-to-clean steel resists fingerprints and smudges.
Features | |
---|---|
Self-Cleaning Oven Racks | No |
Power On Indicator Light | Yes |
Oven Cooking System | Convection Both |

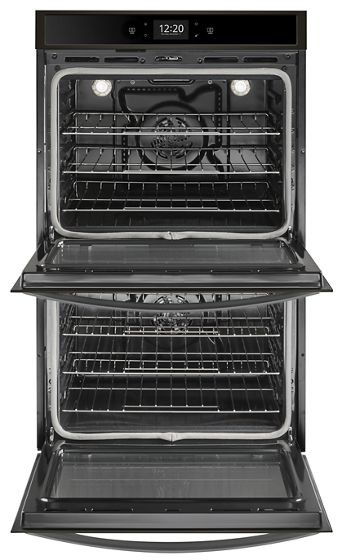

Number of Upper Rack Guides | 3 |

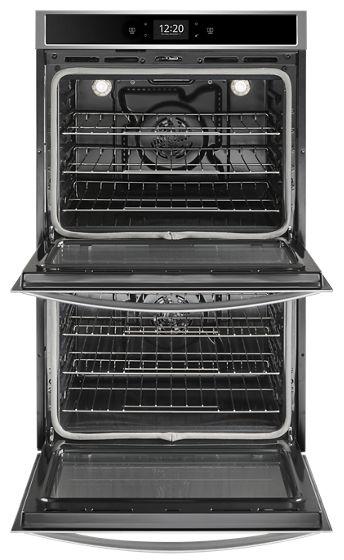

Number of Upper Oven Racks | 3 |
Number of Lower Rack Guides | 3 |
Number of Lower Oven Racks | 2 |
Number of Broil Elements | 1 |
Number of Bake Elements | 1 |
Lower Oven Number of Oven Lights | 1 |
Lower Oven Interior Width | 25.0 in |
Lower Oven Interior Height | 18.0 in |
Lower Oven Interior Depth | 19.0 in |
Light Type | Incandescent |
Light Control | Oven Light Touch Pad |
Language Conversion | English/French/Spanish |
Interior Color | Black |
Interior Coating | Porcelain |
Hidden Bake Element | Yes |
Door Removable | Yes |
Door Lock | Yes |
Door Broil Position | Closed |
Delay Clean | Yes |
Convection Functions | Bake Broil Roast Both |
Broiler Location | Top of Oven |
Automatic Shut-Off | Yes |
Configuration and Overview | |
Size | 30 in |
Oven Type | Double |
Installable Under Cooktop | No |
Fuel Type | Electric |

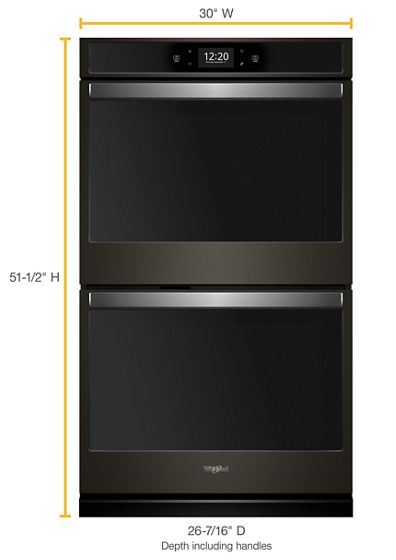

Dimensions | |

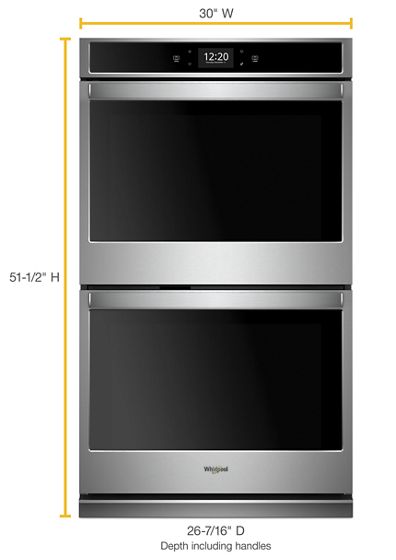

Width | 30.0 in |
Upper Oven Capacity | 5.0 cu. ft. |
Net Weight | 248 lbs |
Lower Oven Capacity | 5.0 cu. ft. |
Height To Top Of Cabinet | 26-7/16 in |
Height | 51-1/2 in |
Depth With Door Open 90 Degree | 42-3/4 in |
Depth Closed Including Handles | 26-7/16 in |
Depth Closed Excluding Handles | 24-1/2 in |
Depth | 26-7/16 in |
Cutout Width | 28-1/2 in |
Cutout Height | 50-1/4 in |
Cutout Depth | 24.0 in |
Capacity | 10.00 |
Features | |
Temperature Conversion | Yes |
Upper Oven Interior Depth | 19.0 in |
Upper Oven Interior Height | 18.0 in |
Upper Oven Interior Width | 25.0 in |
Upper Oven Number of Oven Lights | 1 |
Appearance | |
Flush Installation Approved | No |
Handle Material | Stainless Steel |
Details | |
Bake Element Power | 2800W |
Convection Element Power | 2800 |
Convection Element Type | True |
Oven Cleaning Type | Self-Cleaning |
Oven Rack 1 Type | Standard |
Oven Rack 2 Type | Standard |
Oven Rack 3 Type | Standard |
Certifications | |
Energy Rating | 359 |
Kosher Consumer Friendly | Yes |
Electrical | |
Power Cord Included | No |
CONTROLS | |
Display Color | Full Color |
Compatibility | |
Works With | WiFi, App, Remote Access, Voice Controlled |
Exterior | |
Oven Window Size | Extra Large |
Configuration | |
Oven Configuration | Double Oven |
EndecaProps | |
ProductOutletCategories | Cooking |
